CNPS SLS PLS for sale Mud Logging Unit equipment

FOB Reference Price:Get Latest Price
US $40,000-500,000 / Units | 1 Unit/Units (Min. Order)
Model Number:
SLS PLS
Customization:
Over 2 Units - Customized logo , Customized packaging More
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SLS
Type:
mud logging equipment
Machine Type:
surface logging
Certification:
DNV
Material:
Stainless Steel
Processing Type:
Forging
Use:
mud logging
Application:
the information integration and transmission on the development well
Operating system:
Windows 2000/Windows XP
Size:
can be customized
Sensor:
intrinsically safe standard Sensor
CO2 Analyzer:
Detecting scope: 0.2%~100%.
SAS Safety Alarm System:
Exd IICT6, IP66
Gas Analysis:
NDIR detecting method
Logging Software:
PLS mud logging software system
SupplyAbility
SupplyAbility:
100 Unit/Units per Year
Packaging & Delivery
Packaging Details
By truck
Port
Qingdao,tianjin,shanghai or as customer's requirement
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(day) 90 To be negotiated
Description

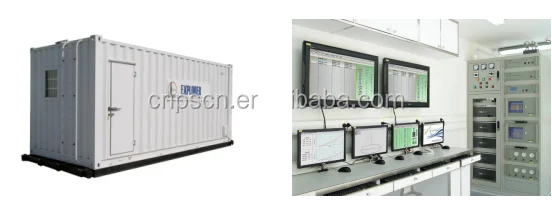

PLS mud logging unit is a new type mud logging equipment developed independently by the company. The infrared gas detection and RS-485 data acquisition technology is adopted. The instrument possessing the characteristics of compact structure, convenient wiring, low failure rate and strong expansibility, applicable to the information integration and transmission on the development well.

SPECIFICATIONS FOR CPLS SMALL MUD LOGGING UNIT



Main Technical Index
Measuring Ingredient
Total gas
 Effective Measuring Scope
0~100% (methane)
Distinguish ability
C1: 0.01% (methane)
Responsiveness error:
≤3.0%FS





Instrument Constitutes
Sensor
intrinsically safe standard 4-20mA Sensor and intrinsically safe pulse Sensor.
Data Acquisition
RS-485 acquisition mode with strong expansibility is easy to maintain
Gas Analysis
NDIR detecting method
Operating system
Windows 2000/Windows XP

Data Transmission System
Real-time mud logging data acquisition and type-in the geological information, PC Terminal and PDA Mobile Terminal for information publishing

Main Features

1) It can be customized as client's requests.

2) CPLS mud logging unit is designed for production surface logging.

3) With many kinds of sensors.

4) The container can be  Exproof type.

5) It is expecially designed for coal seam gas shale gas.

Certifications
Accessories

SP-2K Fast Gas Chromatograph

SP-2K chromatograph is the online gas chromatograph developed independently by the company. It consists of gas treatment panel, gas analysis panel with embedded computer. The FID detector is adopted, the long and short circle is shifted by software. The high and low range is automatic shifted. Its minimum detecting concentration is 10ppm, fast analysis circle is 30s. With the features of high sensitivity,stable baseline and good repeatability, can be configured to various mud logging unit.

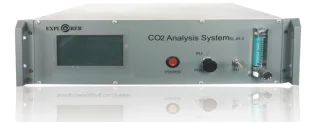

IR-II CO2 Analyzer

The online infrared CO2 analyzer with the international advanced technology and based on NDIR to measure the CO2 concentration.
Technical Specification
Signal output: 4~20mA, 0~5V, RS-232/RS-485.
Detecting scope: 0.2%~100%.
Response time: ≤10s.
Measure error: ±2%FS.
Zero drift: ±2.5%FS.
Repetition error:<2%.

RS-485 Data Acquisition System

The RS-485 data acquisition system is developed independently by the company, can be applied to acquire, calibrate and transmit the drilling engineering parameters in the mud logging unit. Outdoor signal acquisition box adopts the explosion proof design, collecting 40 analog signal and the 14 pulse signal at the same time. The equipment is mature, convenient installation, strong expansible, can be configured to various mud logging unit.

Drawwork Sensor

Explosion-proof mark: Exia ⅡBT4
Work Power: DC+5V
Signal Type: double road orthogonal pulse
Measure Error: ±1 pulse

Mud Density Sensor

Explosion-proof mark: Ex d ⅡCT5
Work Power: DC+24V
Signal Type: 4~20mA
Measuring range: 0.96~2.76g/cm3

Measure Error: ±0.2%.

Other sensor

CPSL can also equiped with other knid of mud logging sensor as client's  requests.
