API 5CT 9 5/8 inch API 5CT l80 13cr casing steel pipe for oil and gas

FOB Reference Price:Get Latest Price
US $200-3,000 / Meter | 100 Meter/Meters (Min. Order)
Supply Ability:
200 Ton/Tons per Quarter
Port:
Qingdao Port,Shanghai, Tianjin
Report Suspicious Activity
Overview
Quick Details
Standard:
API, API 5CT, API 5DP, API 5L, API 5CT
Grade:
API J55-API P110, Cr-Mo alloy, API L80, 13CrMo44, 13CrMo45, Cr9Mo
Thickness:
6.35 - 20 mm
Section Shape:
Round
Outer Diameter:
114.3 - 339.7 mm
Place of Origin:
Shandong, China (Mainland)
Secondary Or Not:
Non-secondary
Application:
Oil Pipe
Technique:
Hot Rolled
Certification:
API
Surface Treatment:
Galvanized
Special Pipe:
API Pipe
Alloy Or Not:
Is Alloy
Product name:
API 5CT 9 5/8 inch API 5CT l80 13cr casing steel pipe
Tensil strength:
655MPa(min)
Yield strength:
552MPa(min)
Total Elongation Under Load:
0.500%
Hardness:
23 Max HRC
Material:
L80 13Cr
Length:
R2,R3

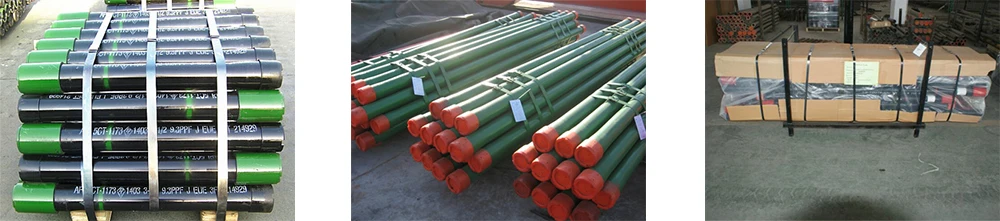

Packaging & Delivery
Packaging Details
good package for 9 5/8 inch API 5CT l80 13cr casing steel pipe for oil and gas.
1.wooden box.
2.steel
Delivery Time
Shipped in 30-120 days after payment
9 5/8 inch API 5CT l80 13cr casing steel pipe for oil and gas

Product Description



13Cr-L80

Manufactured to API specification 5CT. This is a controlled yield strength material with a hardness testing requirement. Used in wells with carbon dioxide environments.

Available in casing dimensions of 114.3 mm (4.5") to 339.7 mm (13.38")

Available in tubing dimensions of 60.3 mm (2.38") to 114.3 mm (4.5").


Specifications



Tensile strength
655 MPa min
95,000 psi min
Yield strength
552 MPa min
655 MPa max

80,000 psi min
95,000 psi max
Total Elongation Under Load
0.500 %
-
Hardness
23 Max HRC
23 Max HRC



Certifications



Quality Policy

High quality and efficiency, Science and technology leading, Top level service, Customer satisfaction.

OCTG Inspection

OCTG inspection items are as follows: appearance inspection, dimension inspection, chemical composition inspection, performance test, drift test, straightness inspection, pipe magnetic leakage and ultrasonic flaw detection, standoff inspection, thread inspection, phosphating corrosion inspection and hydraulic water pressure test.

heat conductivity coefficient

detection system

hydrostatic pressure

testing system1

hydrostatic pressure

testing system2

integration testing device

integration testing device

magnetic particle inspection

magnetic leak flaw detection

screw on and off test equipment
