CFBM - 6 - arm - 35 Caged Fullbore Flowmeter Body Tool well logging tools

FOB Reference Price:Get Latest Price
US $4,000-35,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
CNPS
Model Number:
CFBM-03
Product name:
CFBM - 6 - arm - 35 Caged Fullbore Flowmeter Body Tool
Max. Temperature:
175℃
Maximum Pressure:
15,000psi/20000PSI
Tool Diameter:
35mm (1 3/8" )
Casing Diameter:
4 1/2" to 9 5/8" with different body
Flowmeter Output:
10 pulses/rev. with direction indication
Max. Fluid Velocity:
487.68m/min(1600 ft/min)
Arm:
6 arm
Type:
well logging
Supply Ability
Supply Ability:
30 Piece/Pieces per Quarter
Packaging & Delivery
Packaging Details
Carton wooden box for CFBM - 6 - arm - 35 Caged Fullbore Flowmeter Body Tool for well logging tools
Port
Qingdao,Tianjin,Shanghai
Lead Time :
Shipped in 30 days after payment



CFBM - 6 - arm - 35 Caged Fullbore Flowmeter Body Tool  well logging tools

Product Description

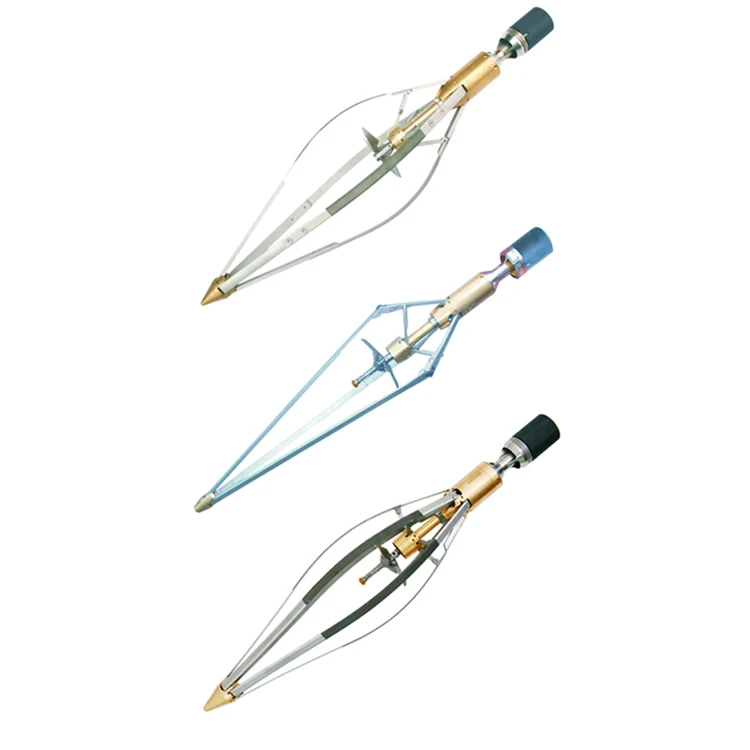

 The Caged Fullbore Flowmeter is run at the bottom of the Production Logging Tool string. By allowing a large diameter impeller to pass through small diameter tubing, accurate flow rates covering a large cross section of the casing may be measured. The springloaded external cage as a three (or six) arms roller centralizer helps to support the weight of the tool in highly deviated wells. The spinner and cage assembly collapse down to tool diameter for running into and pulling out of hole.

Both 43mm OD and 35mm OD body have five types for 4 1/2in, 5in, 5 1/2in, 7in, 9 5/8in casing condition. Every kind of body has 3-arm and 6-arm as two versions



Functions



Production profile and injection profile Detecting leaks and crossflow With low-friction miniature bearing, the minimum starting displacement can be effectively reduced.

The 3-arm roller design ensures the tool fully contact to the well fluid to the greatest extent.

The 6-arm spring bow flowmeter enhances the protection for turbine and the centralization for tool, which is more suitable to be

operated in the horizontal well.

Options with different flowmeter mechanical body for 4.5″, 5″, 5.5″, 7″and 9 5/8″casing size.

H2S resistant

Specifications





CFBM-6-arm-35 Caged Fullbore Flowmeter Body Tool well logging tools

Maximum Temperature:

175℃ (350℉)

Maximum Pressure:

15000psi (103MPa)

Tool Diameter:

35mm

Casing Diameter:

4 1/2" to 9 5/8" with different body

Flowmeter Output:

10 pulses/rev. with direction indication

Threshold:

0.76m/min(2.5ft/min)(Pure water)



0.91m/min(3.0ft/min) (Light oil)



2.13m/min(7.0ft/min)(Heavy oil)



3.81m/min(12.5ft/min)(Air)

Max. Fluid Velocity:

487.68m/min(1600 ft/min)
