OD 54mm 6 arm Roller Centralizer Tool for oil and gas production logging tools

FOB Reference Price:Get Latest Price
US $2,000-40,000 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
30 Set/Sets per Quarter
Port:
Qingdao,Tianjin,Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
CNPS
Model Number:
PRC-6
Product name:
OD 54mm 6 arms Roller Centralizer Tool
Model:
PRC-6
Maximum Temperature:
175℃ (350℉)
Maximum Pressure:
15000psi (103MPa)
Tool Diameter:
54mm (2.13")
Shipping Length:
1056.5mm (41.60")
Make-up Length:
917mm (36.10")
Weight:
11kg (24.2lbs)
Max Pipe Size:
352mm (13.86")
Upper-to-lower Resistance:
<0.5Ω
Packaging & Delivery
Packaging Details
wooden case packing for OD 54mm 6 arms Roller Centralizer Tool for oil and gas production logging tools
Delivery Time
Shipped in 30 days after payment

OD 54mm 6 arms Roller Centralizer Tool for oil and gas production logging tools



Product Description

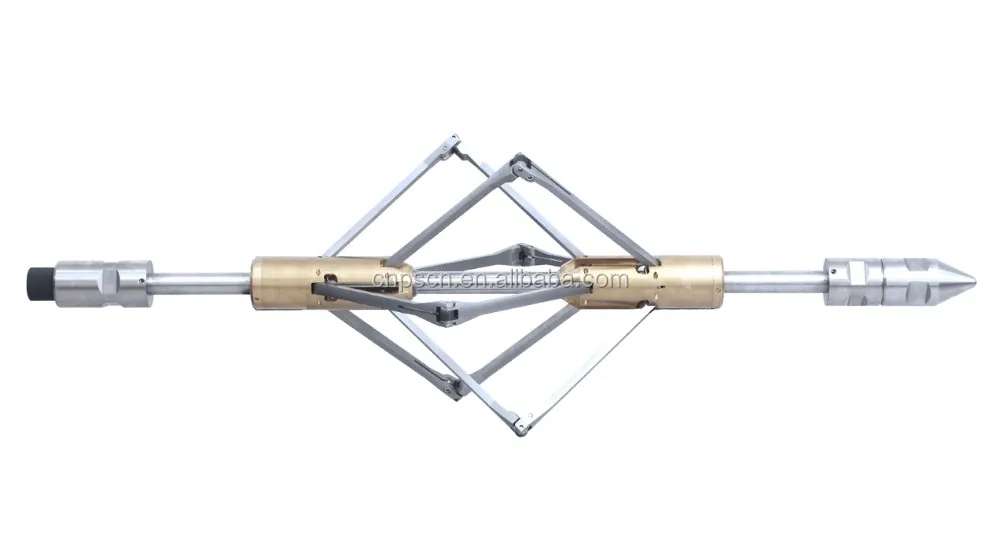

This centralizer is a 6-arm, single-roller version, used to centralize the logging toolstring in vertical, deviated or horizontal wellbore for production logging operations. The tool has six centralizing arms, each equipped with one roller at the elbow section. Each arm is connected on either side with a slick joint, which ensures accurate centralizing of the tool. The tool provides persistent and strong contact force. The enduring carbide roller prolongs the life of the tool.



Advantages





Good centralizing performance
H2S resistant





Specifications





Maximum Temperature:175℃ (350℉)
Maximum Pressure:15000psi (103MPa)
Tool Diameter:54mm (2.13")
Shipping Length:1056.5mm (41.60″)
Make-up Length:917mm (36.10″)
Weight:11kg (24.2lbs)
Max Pipe Size:352mm (13.86″)
Upper-to-lower Resistance:<0.5Ω
Certifications











GB/T19001-2016/ISO9001:2015
